Diesel

DIESEL

$929.00 - $1,129.00

$929.00 - $1,129.00

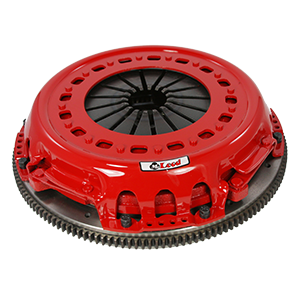

The McLeod Workhorse clutch is available for both gas and diesel applications. Available in 12 1/4 inch and 13 inch kits, the Workhorse is equipped with a heavy duty flywheel, heavy duty pressure plate, and comes with the option of either organic or ceramic discs

have a question?

Ask a specialist.

(714) 630-2764

In-House Experts
We know our products

Item# Description Qty. MSRP Your Price
78121

Workhorse:Kit:1998-03 Dodge Truck: 8.0L 488(Ci): 1-1/16 X 10: W/Flywheel Dodge: Ram 3500 98 - 03 8 L Engine, Dodge: Ram 2500 98 - 03 8 L Engine

ADD TO CART
  $929.00
78122

Workhorse Pro:Kit: Dodge Truck 12 1/4" Std P/P & Ceramic Disc W/Fly Dodge: Ram 3500 98 - 03 8 L Engine, Dodge: Ram 3500 98 - 03 5.9 L Engine, Dodge: Ram 2500 98 - 03 8 L Engine, Dodge: Ram 2500 98 - 03 5.9 L Engine

ADD TO CART
  $929.00
78131

Workhorse:Kit:Dodge Truck 13" Std P/P & Organic Disc W/Fly Dodge: Ram 3500 98 - 02 8 L Engine, Dodge: Ram 3500 98 - 02 5.9 L Engine, Dodge: Ram 2500 98 - 02 8 L Engine, Dodge: Ram 2500 98 - 02 5.9 L Engine

ADD TO CART
  $949.00
78132

Workhorse Pro:Kit:Dodge Truck 13.0 Std P/P Ceramic With Fw 1000 Torque Dodge: Ram 3500 98 - 02 8 L Engine, Dodge: Ram 3500 98 - 02 5.9 L Engine, Dodge: Ram 2500 98 - 02 8 L Engine, Dodge: Ram 2500 98 - 02 5.9 L Engine

ADD TO CART
  $949.00
78221

Workhorse HD:Kit: Dodge Truck 12 1/4" HD P/P & Organic Disc W/Fly Dodge: Ram 3500 98 - 03 8 L Engine, Dodge: Ram 2500 98 - 03 8 L Engine

ADD TO CART
  $1,019.00
78222

Workhorse Pro:Kit:Dodge Truck 12 1/4" Std. P/P & Ceramic Disc W/Fly Dodge: Ram 3500 98 - 03 8 L Engine, Dodge: Ram 3500 98 - 03 5.9 L Engine, Dodge: Ram 2500 98 - 03 8 L Engine, Dodge: Ram 2500 98 - 02 5.9 L Engine

ADD TO CART
  $1,109.00
78231

Workhorse HD:Kit:Dodge Truck 13" HD P/P & Organic Disc W/Fly Dodge: Ram 3500 98 - 02 8 L Engine, Dodge: Ram 3500 98 - 02 5.9 L Engine, Dodge: Ram 2500 98 - 02 8 L Engine, Dodge: Ram 2500 98 - 02 5.9 L Engine

ADD TO CART
  $1,029.00
78232

Workhorse Pro:Kit:Dodge Truck 13" Std. P/P & Ceramic Disc W/Fly Dodge: Ram 3500 98 - 02 8 L Engine, Dodge: Ram 3500 98 - 02 5.9 L Engine, Dodge: Ram 2500 98 - 02 8 L Engine, Dodge: Ram 2500 98 - 02 5.9 L Engine

ADD TO CART
  $1,129.00

Installation Instructions: McLeod Diesel Single Disc Clutch Kits

To view Installation Instructions for your McLeod Diesel Single Disc clutch kit, please click here.


Bolt Torque Specs

1/4” = 15 FT. LBS
5/16” = 25 FT. LBS
3/8” = 35 FT. LBS
7/16” = 65 FT. LBS
½” = 70 FT. LBS
8MM = 25 FT. LBS
10MM = 45 FT. LBS
10MM Crank Bolt = 65 FT. LBS
11MM Crank Bolt = 65 FT. LBS


Clutch Break-In Procedure

All McLeod street performance clutches require a Break-In Period of 500-750 miles of street, stop and go type of driving prior to driving at wide open throttle. This mileage is required to properly seat the disc with the pressure plate and the flywheel. The mileage listed will provide about 1200 apply and release cycles to the clutch assembly.

DO NOT run the vehicle on a chassis dyno prior to full Break-In procedure.
Important: During performance driving and break-in, all traction control devices must be turned off or clutch slippage will occur!


Be the first to add a review for this product

Review Product

 Limited Warranty

McLeod Racing LLC, products are warranted to be free from defects in material and workmanship for the period of ninety (90) days, from the date of purchase. McLeod does not warrant or make any representations concerning its products when not installed and/or used strictly in accordance with the manufacturer’s instructions for such; installation and operation, and in accordance with good installation and maintenance practices of the automotive industry. Products purchased used do not carry a warranty. This warranty is to the original purchaser and is nontransferable.

McLeod Racing LLC will not be held liable for the labor charges and other intangible or consequent losses that might be claimed as a result of the failure of any part, nor shall it be liable for damages or injury to persons or property resulting from the misuse or improper installation of any part subject to this warranty.

No merchandise may be returned for any reason unless prior return merchandise authorization number (RMA) has been obtained from McLeod. An RMA number may be obtained via ww.mcleodracing.com or by calling McLeod directly.

McLeod Racing LLC reserves the right to examine all parts returned for warranty claim to determine whether or not any such part has failed because of a defect in material or workmanship. McLeod's obligation under this warranty shall be limited to repairing, replacing or crediting, at its option, any part found to be defective. All products returned to McLeod for warranty inspection must be prepaid by the customer under this warranty.

In a racing environment, the type of stress placed on automotive parts can vary dramatically by the type of use, driving style, track preparation, differing tire style and other variables that are out of McLeod's control. For this reason, any parts used in a racing environment shall be void of any warranty either expressed or implied.

There are no other warranties, either expressed or implied including, but not limited to, warranty of merchantability, and warranty of fitness for a particular purpose which extend beyond those set forth in the preceding paragraphs. This warranty shall be interpreted and applied in accordance with California law.

For any changes or updated versions of the warranty described above, please refer to www.mcleodracing.com before installation of product.
