RST HD

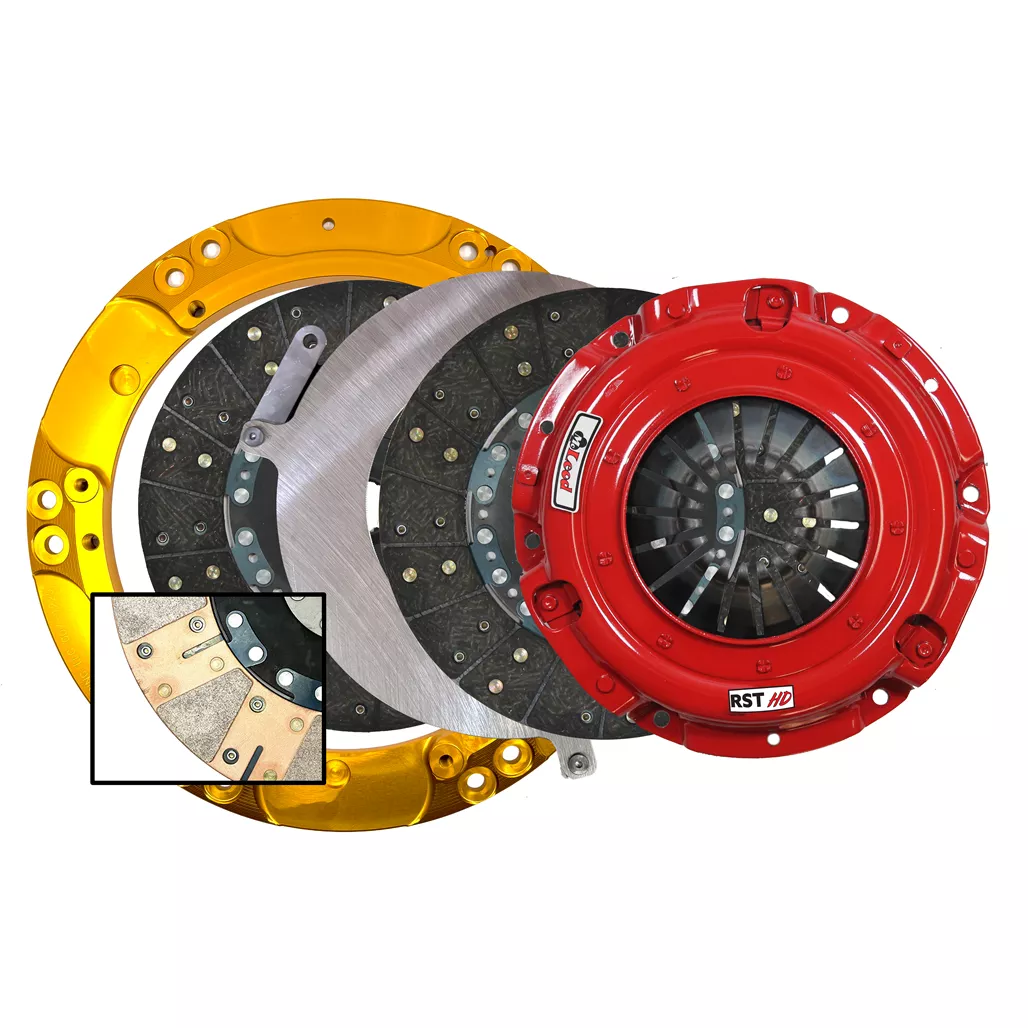

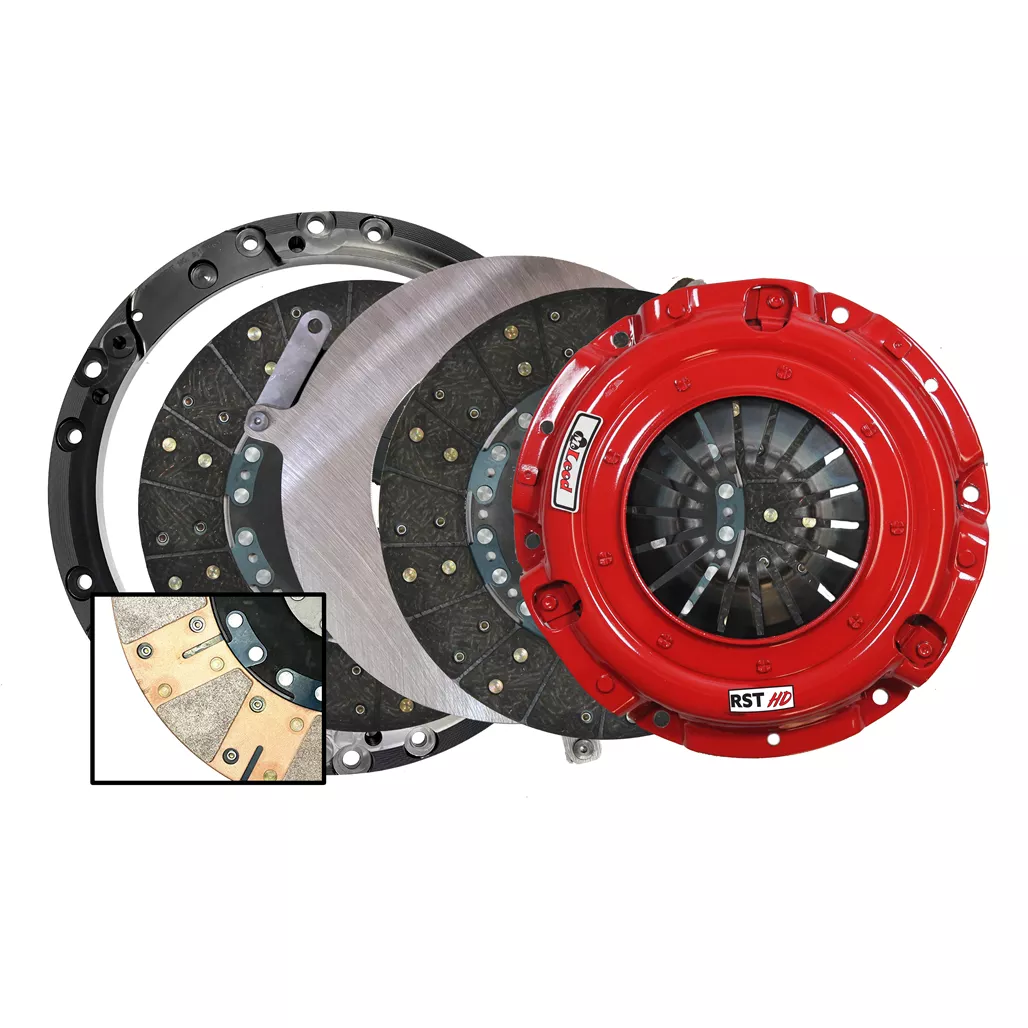

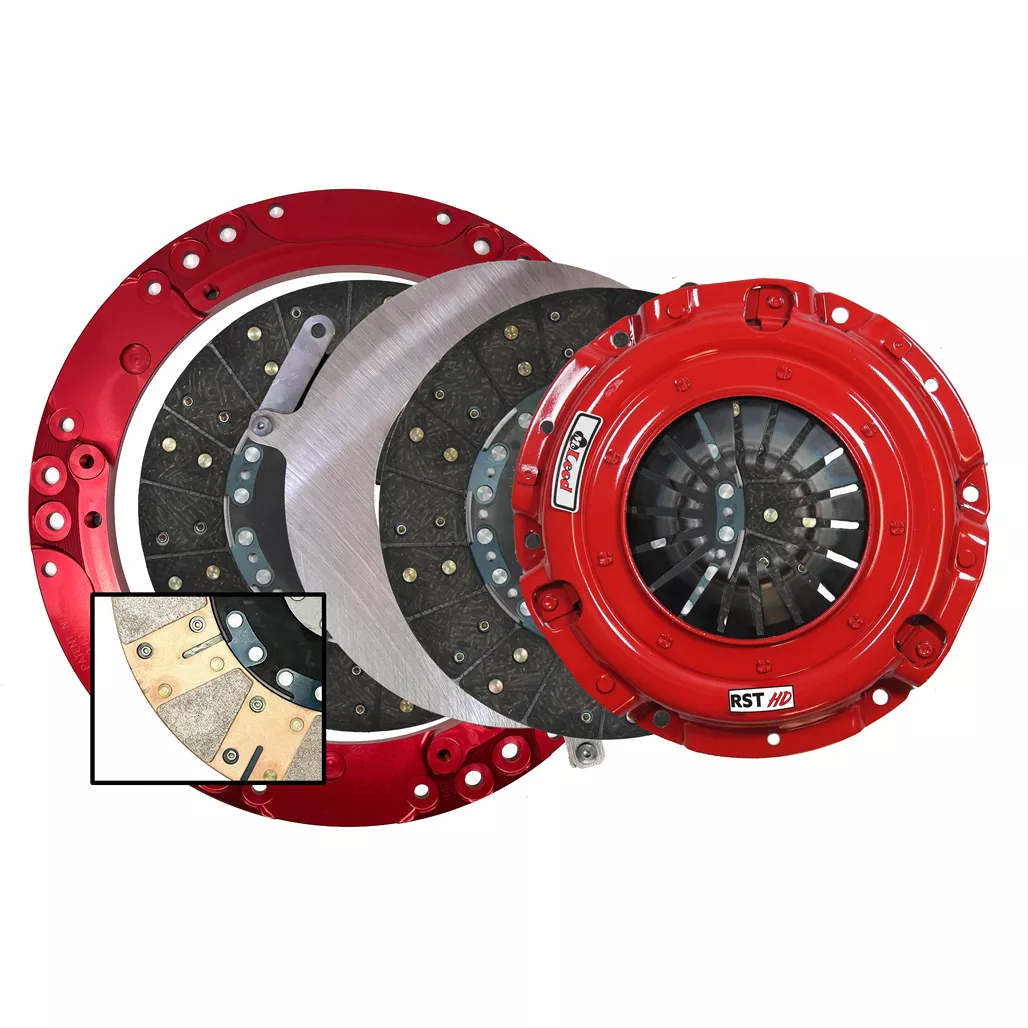

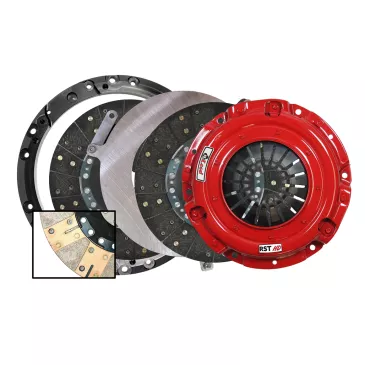

MCLEOD RST HD TWIN DISC CLUTCH KIT | 950HP STREET & TRACK
$1025.00 - $1995.00
Intended for the high horsepower street and track fan, the McLeod RST HD twin disc clutch kit bridges the gap between our flagship RST and RXT systems. Able to handle 950hp, this clutch can handle serious horsepower and still remain highly street-able. The unique hybrid clutch discs—featuring a smooth-engaging organic material on one side and a high-bite segmented ceramic material on the other—provide an ideal balance of soft pedal effort and enhanced torque-holding capability. This unit is perfect for the driver who pushes their vehicle harder on the street and demands track-ready performance without harsh engagement or excessive drivetrain stress.
| Item# | Description | Qty. | Your Price | |
|---|---|---|---|---|
| 6912-03CMD | McLeod RST HD Street Twin Clutch Kit - Metric Ring, 2001.5-2004 Ford Mustang 4.6L, 1-1/16 x 10, Cable Linkage |
ADD TO CART
|
||
| 6306807MD | McLeod RST HD Street Twin Clutch Kit w/ Aluminum Flywheel - 2009-2015 Cadillac CTSV, 2014-2019 C7 Corvette LT1/LT4, 2016-2024 Camaro LT1, 2012-2024 Camaro ZL1, 168T, 1-1/8 x 26 Spline |
ADD TO CART
|
||
| 6911-03MD | McLeod RST HD Street Twin Clutch Kit Ð for Large Diameter Flywheel, Red Ring, 1-1/16 x 10 Spline |
ADD TO CART
|
||
| 6406607MD | McLeod RST HD Street Twin Clutch Kit w/ Steel Flywheel - 2015-2017 Chevrolet SS Sedan LS3 6 Bolt Crank, 1-1/8 x 26 Spline, 168T |
ADD TO CART
|
||
| 6471207MD | McLeod RST HD Street Twin Clutch Kit w/ Steel Flywheel - Mazda 13B/20B Rotary, 1-1/8 X 26, 125T, Aftermarket Transmission |
ADD TO CART
|
||
| 6911-04MD | McLeod RST HD Street Twin Clutch Kit Ð for Large Diameter Flywheel, Red Ring, 1-1/8 x 10 Spline |
ADD TO CART
|
||
| 6344907MD | McLeod RST HD Street Twin Clutch Kit w/ Aluminum Flywheel - 2009-2010, 2012-2021 Dodge Challenger 5.7L/6.4L, 1-1/8 x 26 Spline, 130T |
ADD TO CART
|
||
| 6911-08MD | McLeod RST HD Street Twin Clutch Kit Ð for Large Diameter Flywheel, Red Ring, 1 x 14 Spline |
ADD TO CART
|
||
| 6306607MD | McLeod RST HD Street Twin Clutch Kit w/ Aluminum Flywheel - 2015-2017 Chevrolet SS Sedan LS3 6 Bolt Crank, 1-1/8 x 26 Spline, 168T |
ADD TO CART
|
||
| 6911-06MD | McLeod RST HD Street Twin Clutch Kit Ð for Large Diameter Flywheel, Red Ring, 1-3/8 x 10 Spline |
ADD TO CART
|
||
| 6333825MD | McLeod RST HD Street Twin Clutch Kit w/ Aluminum Flywheel - 2018-2023 Ford Mustang 5.0L 8 Bolt Crank, 1 x 23M Spline, 164T |
ADD TO CART
|
||
| 6305504MD | McLeod RST HD Street Twin Clutch Kit w/ Aluminum Flywheel - 2001-2007 GM 6.0L LS 6 Bolt Crank, 1-1/8 x 10 Spline, 168T |
ADD TO CART
|
||
| 6482207MD | McLeod RST HD Street Twin Clutch Kit w/ Steel Flywheel - Toyota 2JZ Engine, 1-1/8 x 26, 115T, FOR PUSH STYLE ACTUATION ONLY |
ADD TO CART
|
||
| 6406807MD | McLeod RST HD Street Twin Clutch Kit w/ Steel Flywheel - 2009-2015 Cadillac CTSV, 2014-2019 C7 Corvette LT1/LT4, 2016-2024 Camaro LT1, 2012-2024 Camaro ZL1, 168T, 1-1/8 x 26 Spline |
ADD TO CART
|
||
| 6305507MD | McLeod RST HD Street Twin Clutch Kit w/ Aluminum Flywheel - 1997-2015 GM LS 6 Bolt Crank, 1-1/8 x 26 Spline, 168T |
ADD TO CART
|
||
| 6439007MD | McLeod RST HD Street Twin Clutch Kit w/ Steel Flywheel - 2.3L EcoBoost Crate Engine, 1-1/8 x 26 Spline |
ADD TO CART
|
||
| 6405507MD | McLeod RST HD Street Twin Clutch Kit w/ Steel Flywheel - 1997-2015 GM LS 6 Bolt Crank, 1-1/8 x 26 Spline, 168T |
ADD TO CART
|
||
| 6405807MD | McLeod RST HD Street Twin Clutch Kit w/ Steel Flywheel - 2009-Up GM LS-X 8 Bolt Crank, 1-1/8 x 26, 168T, For Retro Fit Applications Only |
ADD TO CART
|
||
| 6405907MD | McLeod RST HD Street Twin Clutch Kit w/ Steel Flywheel - 2009-Up GM LS-X 9 Bolt Crank, 1-1/8 x 26, 168T, For Retro Fit Applications Only |
ADD TO CART
|
||
| 6339007MD | McLeod RST HD Street Twin Clutch Kit w/ Aluminum Flywheel - 2.3L EcoBoost Crate Engine, 1-1/8 x 26 Spline |
ADD TO CART
|
||
| 6305907MD | McLeod RST HD Street Twin Clutch Kit w/ Aluminum Flywheel - 2009-Up GM LS-X 9 Bolt Crank, 1-1/8 x 26, 168T, For Retro Fit Applications Only |
ADD TO CART
|
||
| 6363210MD | McLeod RST HD Street Twin Clutch Kit w/ Aluminum Flywheel - 2023-2025 Nissan 400Z |
ADD TO CART
|
||
| 6911-05MD | McLeod RST HD Street Twin Clutch Kit Ð for Large Diameter Flywheel, Red Ring, 1-3/16 x 18 Spline |
ADD TO CART
|
||
| 6911-07MD | McLeod RST HD Street Twin Clutch Kit Ð for Large Diameter Flywheel, Red Ring, 1-1/8 x 26 Spline |
ADD TO CART
|
||
| 6333807MD | McLeod RST HD Street Twin Clutch Kit w/ Aluminum Flywheel - 2018-2023 Ford Mustang 5.0L 8 Bolt Crank, 1-1/8 x 26 Spline, 164T, (Calimer Modified Factory Transmission Only) |
ADD TO CART
|
||
| 6339825MD | McLeod RST HD Street Twin Clutch Kit w/ Aluminum Flywheel - 2024-2026 Ford Mustang GT, Dark Horse 5.0L, 8-Bolt Crank, 1 x 23M Spline |
ADD TO CART
|
||
| 6439003MD | McLeod RST HD Street Twin Clutch Kit w/ Steel Flywheel - 2.3L EcoBoost Crate Engine, 1-1/16 x 10 Spline |
ADD TO CART
|
||
| 6432807MD | McLeod RST HD Street Twin Clutch Kit w/ Steel Flywheel - 1996-2004 Ford Mustang 4.6L 8 Bolt Crank, 1-1/8 x 26 Spline, 164T, Cable Linkage to T-56 Magnum |
ADD TO CART
|
||
| 63388-25MD | McLeod RST HD Street Twin Clutch Kit w/ Aluminum Flywheel - 2015-2023 Ford Mustang 2.3L EcoBoost, 1 x 23M Spline |
ADD TO CART
|
||
| 6912-07MD | McLeod RST HD Street Twin Clutch Kit - Metric Ring, 1997-2015 GM LS, 2001.5-2017 Ford Mustang 4.6/5.0L, 1-1/8 x 26 Spline |
ADD TO CART
|
||
| 6405504MD | McLeod RST HD Street Twin Clutch Kit w/ Steel Flywheel - 2001-2007 GM 6.0L LS 6 Bolt Crank, 1-1/8 x 10 Spline, 168T |
ADD TO CART
|
||
| 6344904MD | McLeod RST HD Street Twin Clutch Kit w/ Aluminum Flywheel - 2011 Dodge Challenger 5.7/6.4L, 1-1/8 x 10 Spline, 130T |
ADD TO CART
|
||
| 6913-03MD | McLeod RST HD Street Twin Clutch Kit Ð for Small Diameter Flywheel, Black Ring, 1-1/16 x 10 Spline |
ADD TO CART
|
||
| 6339003MD | McLeod RST HD Street Twin Clutch Kit w/ Aluminum Flywheel - 2.3L EcoBoost Crate Engine, 1-1/16 x 10 Spline |
ADD TO CART
|
||
| 6435825MD | McLeod RST HD Street Twin Clutch Kit w/ Steel Flywheel - 2011-2017 Ford Mustang GT/Boss 302 5.0L 8 Bolt Crank, 1 x 23M Spline, 164T |
ADD TO CART
|
||
| 6913-04MD | McLeod RST HD Street Twin Clutch Kit Ð for Small Diameter Flywheel, Black Ring, 1-1/8 x 10 Spline |
ADD TO CART
|
||
| 6912-07CMD | McLeod RST HD Street Twin Clutch Kit - Metric Ring, 2001.4-2004 Ford Mustang 4.6L, 1-1/8 x 26 Spline, Cable Linkage, Aftermarket Transmission |
ADD TO CART
|
||
| 6975-07MD | McLeod RST HD Street Twin Clutch Kit - Modular Steel Base Plate, 2010-2014 GT500, 2009-2017 Viper, 1-1/8 x 26 Spline |
ADD TO CART
|
||
| 6335825MD | McLeod RST HD Street Twin Clutch Kit w/ Aluminum Flywheel - 2011-2017 Ford Mustang GT/Boss 302 5.0L 8 Bolt Crank, 1 x 23M Spline, 164T |
ADD TO CART
|
||
| 6912-03MD | McLeod RST HD Street Twin Clutch Kit - Metric Ring, 2005-2010 Ford Mustang 4.6L, 1-1/16 x 10 Spline |
ADD TO CART
|
||
| 6913-07MD | McLeod RST HD Street Twin Clutch Kit Ð for Small Diameter Flywheel, Black Ring, 1-1/8 x 26 Spline |
ADD TO CART
|
||
| 6912-04MD | McLeod RST HD Street Twin Clutch Kit - Metric Ring, 2001-2007 GM 6.0L LS, 1-1/8 x 10 Spline, use w/flat flywheel |
ADD TO CART
|
||
| 6335807MD | McLeod RST HD Street Twin Clutch Kit w/ Aluminum Flywheel - 2005-2017 Ford Mustang 4.6/5.0L 8 Bolt, 1-1/8 x 26 Spline, 164T, Aftermarket Transmission |
ADD TO CART
|
||
| 6913-02MD | McLeod RST HD Street Twin Clutch Kit Ð for Small Diameter Flywheel, Black Ring, 1 x 23 Spline |
ADD TO CART
|
||
| 6912-25MD | McLeod RST HD Street Twin Clutch Kit - Metric Ring, 2011-2017 Ford Mustang GT/Boss 302 5.0L, 1 x 23M Spline |
ADD TO CART
|
||
| 6913-07CMD | McLeod RST HD Street Twin Clutch Kit Ð for Small Diameter Flywheel, Black Ring, 1-1/8 x 26 Spline, Cable Linkage, Aftermarket Transmission |
ADD TO CART
|
||
| 6911-02MD | McLeod RST HD Street Twin Clutch Kit Ð for Large Diameter Flywheel, Red Ring, 1 x 23 Spline |
ADD TO CART
|
||
| 6335803MD | McLeod RST HD Street Twin Clutch Kit w/ Aluminum Flywheel - 1996-2010 Ford Mustang 4.6L 8 Bolt Crank, 1-1/16 x 10 Spline, 164T |
ADD TO CART
|
||
| 6482209MD | McLeod RST HD Street Twin Clutch Kit w/ Steel Flywheel - Toyota 2JZ Engine, 1-1/8 x 21, 115T, FOR PUSH STYLE ACTUATION ONLY |
ADD TO CART
|
||
| 6482210MD | McLeod RST HD Street Twin Clutch Kit w/ Steel Flywheel - Toyota 2JZ Engine, 1 x 24, 115T, FOR PUSH STYLE ACTUATION ONLY |
ADD TO CART
|
||
| 6435807MD | McLeod RST HD Street Twin Clutch Kit w/ Steel Flywheel - 2005-2017 Ford Mustang 4.6/5.0L 8 Bolt, 1-1/8 x 26 Spline, 164T, Aftermarket Transmission |
ADD TO CART
|
||
| 6908-07MD | McLeod RST HD Street Twin Clutch Kit w/ Steel Flywheel - 2007-2009 Ford GT500 8 Bolt Crank, 1-1/8 x 26 Spline, 164T |
ADD TO CART
|
||
| 64388-25MD | McLeod RST HD Street Twin Clutch Kit w/ Steel Flywheel - 2015-2023 Ford Mustang 2.3L EcoBoost, 1 x 23M Spline |
ADD TO CART
|
||
| 69437-07CTMD | McLeod RST HD Street Twin Clutch Kit w/ Steel Flywheel - 2003-2004 Dodge Viper, Sprung Hub Disc, 1-1/8 x 26, w/Crank Trigger |
ADD TO CART
|
||
| 6482230MD | McLeod RST HD Street Twin Clutch Kit w/ Steel Flywheel - Toyota 2JZ Engine, 1-1/4 x 14, 115T, FOR PUSH STYLE ACTUATION ONLY |
ADD TO CART
|
||
| 6435803MD | McLeod RST HD Street Twin Clutch Kit w/ Steel Flywheel - 1996-2010 Ford Mustang 4.6L 8 Bolt Crank, 1-1/16 x 10 Spline, 164T |
ADD TO CART
|
||
| 6913-03CMD | McLeod RST HD Street Twin Clutch Kit Ð for Small Diameter Flywheel, Black Ring, 1-1/16 x 10 Spline |
ADD TO CART
|
||
| 6913-05MD | McLeod RST HD Street Twin Clutch Kit Ð for Small Diameter Flywheel, Black Ring, 1-3/16 x 10 Spline |
ADD TO CART
|
There are no featured galleries matching this product.
| SKU# | FILE NAME | DATE | ||
|---|---|---|---|---|
| 6912-03CMD | ALL RST Instructions with Dedicated Flywheel |
07-02-2026 | Download | |
| 6306807MD | ALL RST Instructions with Red, Black, Gold Adapter Ring |
07-02-2026 | Download | |
| 6911-03MD | ALL RST Instructions Modular Twin No Flywheel. |
07-02-2026 | Download | |
| 6406607MD | ALL RST Break in Instructions |
07-02-2026 | Download | |
| 6471207MD | Bearing Travel Tech Tip |
07-02-2026 | Download | |
| 6911-04MD | RST Bolt Torque Specs. |
07-02-2026 | Download |
1. Change the pilot bearing.
2. Break the clutch in according to the instructions provided.
3. Ensure proper bellhousing alignment.
4. Resurface the flywheel. This is a critical step to guard against clutch chatter/shudder. We recommend a very coarse surface texture from a stone grinder. Something that if you ran your fingernail across the flywheel, the texture would catch your nail.
5. Inspect the entire clutch system, including hydraulics and linkage. Replacement of the Hydraulic slave with an OEM replacement is critical.
2. Break the clutch in according to the instructions provided.
3. Ensure proper bellhousing alignment.
4. Resurface the flywheel. This is a critical step to guard against clutch chatter/shudder. We recommend a very coarse surface texture from a stone grinder. Something that if you ran your fingernail across the flywheel, the texture would catch your nail.
5. Inspect the entire clutch system, including hydraulics and linkage. Replacement of the Hydraulic slave with an OEM replacement is critical.
- A Single disc application is installed with the completely flat side facing the flywheel. The protruding side of the hub (side with springs) assembly will face up towards the pressure plate ( in most cases)
- A double-disc unit will have both hubs with the protruding side of the hub face up towards the pressure plate and towards the transmission. (in most cases)
Yes. The pins help to ensure proper alignment of the pressure plate and add strength.
The biggest factors in clutch life are the way it is used and the output of the engine. McLeod Clutches are designed for maximum life but that life can be shortened by using much stickier tires than stock, stop and go driving, track use, tires of larger diameter and other factors that place added stress on the clutch.
We would like to see 500-750 miles of stop & go city driving. With no drag racing or dyno tuning. Make sure to drive in stop & go city driving to actuate the clutch 1200 to 1500 times. You can drive the car 600 miles on the interstate and only shift the car 5 or 6 times and not break in the clutch.
1. Oil or grease on the clutch facings.
2. Worn or damaged clutch linkage, leaf springs, bushings, mounts, u-joints, CV joints, engine mounts, transmission mounts.
3. A flywheel that has not been resurfaced properly, has hot spots, has excessive run-out and or incorrect flywheel step.
4. Pressure plate or disc that is bent.
5. Defective pressure plate and or disc.
6. An engine that is not tuned properly.
7. A disc that either lacks enough marcel or has no marcel at all.
2. Worn or damaged clutch linkage, leaf springs, bushings, mounts, u-joints, CV joints, engine mounts, transmission mounts.
3. A flywheel that has not been resurfaced properly, has hot spots, has excessive run-out and or incorrect flywheel step.
4. Pressure plate or disc that is bent.
5. Defective pressure plate and or disc.
6. An engine that is not tuned properly.
7. A disc that either lacks enough marcel or has no marcel at all.
1. Clutch disc binding on input shaft.
2. Worn or damaged or improperly adjusted clutch linkage.
3. Improperly bled or faulty hydraulics.
4. Flywheel improperly surfaced, machined too thin or not resurfaced before new clutch was installed.
5. Damaged or bent pressure plate and or disc.
6. Clutch disc hub hitting the flywheel bolts.
7. Improper clutch disc thickness.
8. Bent input shaft.
2. Worn or damaged or improperly adjusted clutch linkage.
3. Improperly bled or faulty hydraulics.
4. Flywheel improperly surfaced, machined too thin or not resurfaced before new clutch was installed.
5. Damaged or bent pressure plate and or disc.
6. Clutch disc hub hitting the flywheel bolts.
7. Improper clutch disc thickness.
8. Bent input shaft.
1. Shifter installed improperly or shifter linkage improper adjusted or damaged.
2. Misaligned bellhousing.
3. Wrong fluid type used in transmission.
4. Worn transmission parts i.e. synchro gears and/or bent shift fork.
5. Pilot bushing worn or binding on input shaft
2. Misaligned bellhousing.
3. Wrong fluid type used in transmission.
4. Worn transmission parts i.e. synchro gears and/or bent shift fork.
5. Pilot bushing worn or binding on input shaft
1. A clutch assembly that is worn or failing.
2. Oil or grease on friction surfaces.
3. A clutch that is not designed to hold the amount of power the being made.
4. A clutch not design for the type of driving being done i.e. using a clutch designed for the street at the track.
5. Improper clutch adjustment, bearing free play.
2. Oil or grease on friction surfaces.
3. A clutch that is not designed to hold the amount of power the being made.
4. A clutch not design for the type of driving being done i.e. using a clutch designed for the street at the track.
5. Improper clutch adjustment, bearing free play.
Yes, we recommend you balance your new clutch at a local machine shop, or you can contact us as we do offer a balancing service as well.
Pressure Plate Bolts
¼ = 15 ft. lbs
5/16 = 25 ft. lbs
3/8 = 35 ft. lbs
8mm = 25 ft. lbs
10mm = 45 ft. lbs
Crank Bolts
7/16 = 65 ft. lbs
½ = 70 ft. lbs
10mm = 65 ft. lbs
11mm = 65 ft. lbs
¼ = 15 ft. lbs
5/16 = 25 ft. lbs
3/8 = 35 ft. lbs
8mm = 25 ft. lbs
10mm = 45 ft. lbs
Crank Bolts
7/16 = 65 ft. lbs
½ = 70 ft. lbs
10mm = 65 ft. lbs
11mm = 65 ft. lbs
The McLeod RST HD achieves this balance through an innovative hybrid twin-disc design that places less stress on your drivetrain. Instead of using identical friction materials on both sides of the discs, the RST HD uses a dual-performance configuration:
-
The Street Side: Features a premium, full-face organic friction material that delivers the ultra-smooth engagement, zero chatter, and soft pedal effort you expect from a daily driver.
-
The Track Side: Features a high-coefficient, segmented ceramic friction material that provides the aggressive bite and massive torque-holding capacity needed to handle up to 950 HP.
By engineering these two distinct materials to work together, McLeod bridges the gap between comfort and capability—giving you an economically priced twin-disc clutch with excellent street manners that won't slip when you push it on the track.
